BS ISO 8133:2014 PDF

Hydraulic fluid power. Mounting dimensions for accessories for single rod cylinders, 16 MPa (160 bar) compact series

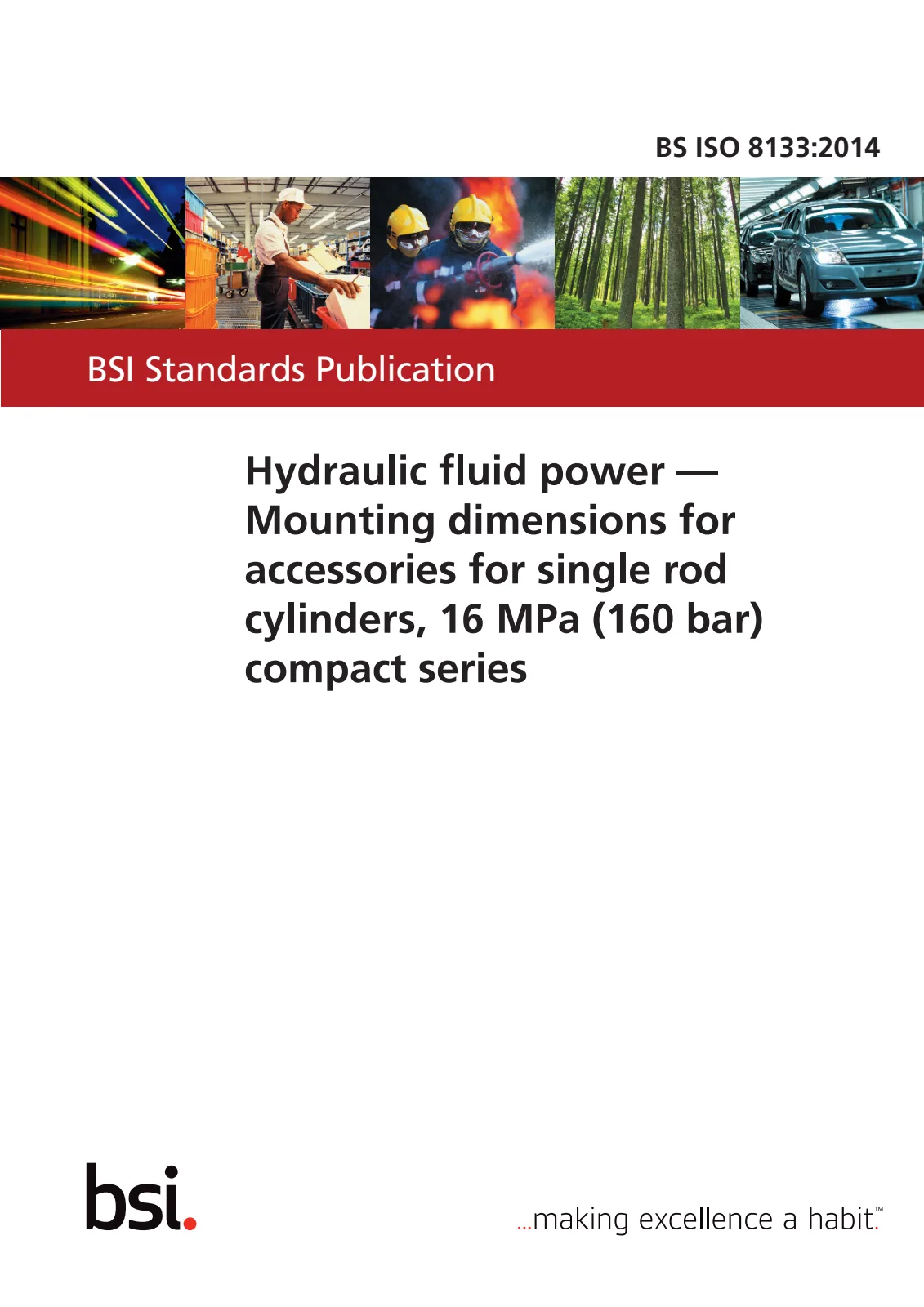

Первая страница стандарта BS ISO 8133:2014

Открыть превью (PDF)

Название (английский):

BS ISO 8133:2014

Hydraulic fluid power. Mounting dimensions for accessories for single rod cylinders, 16 MPa (160 bar) compact series

Статус документа:: Отменён
Формат:: Электронный (PDF)
Дата публикации:: 30 ноября 2014 г.
ICS:: 23.100.20
SKU:: BS ISO 8133:2014

Тип поставки:

Full version50 €Read online 24h10 €Read online 72h15 €

Язык документа:

ruen

Срок поставки:Мгновенная загрузка

Цена:50 €

Abstract

1 Scope This International Standard specifies the mounting dimensions required for interchangeability of accessories for 16 MPa [160 bar ) ] compact cylinders conforming to ISO 6020-2. The accessories have been designed specifically for use with cylinders manufactured in accordance with ISO 6020-2, but this does not limit their application.

Note 1 bar = 0,1 MPa = 10 5 Pa; 1 MPa = 1 N/mm 2 .

This International Standard covers the following accessories, identified in accordance with ISO 6099:

— AP6 — rod eye spherical, female thread (see Figure 1 and Table 1);

— AB5 — clevis bracket, spherical eye, in angle (see Figure 2 and Table 2);

— AA6-L — pivot pin, spherical bearing, locking plate (see Figure 3 and Table 3);

— AL6 — locking plate for pivot pin (see Figure 4 and Table 4);

— AP2 — rod clevis, female thread (see Figure 5 and Table 5);

— AP4 — rod eye plain, female thread (see Figure 6 and Table 6);

— AB2 — eye bracket (s...
