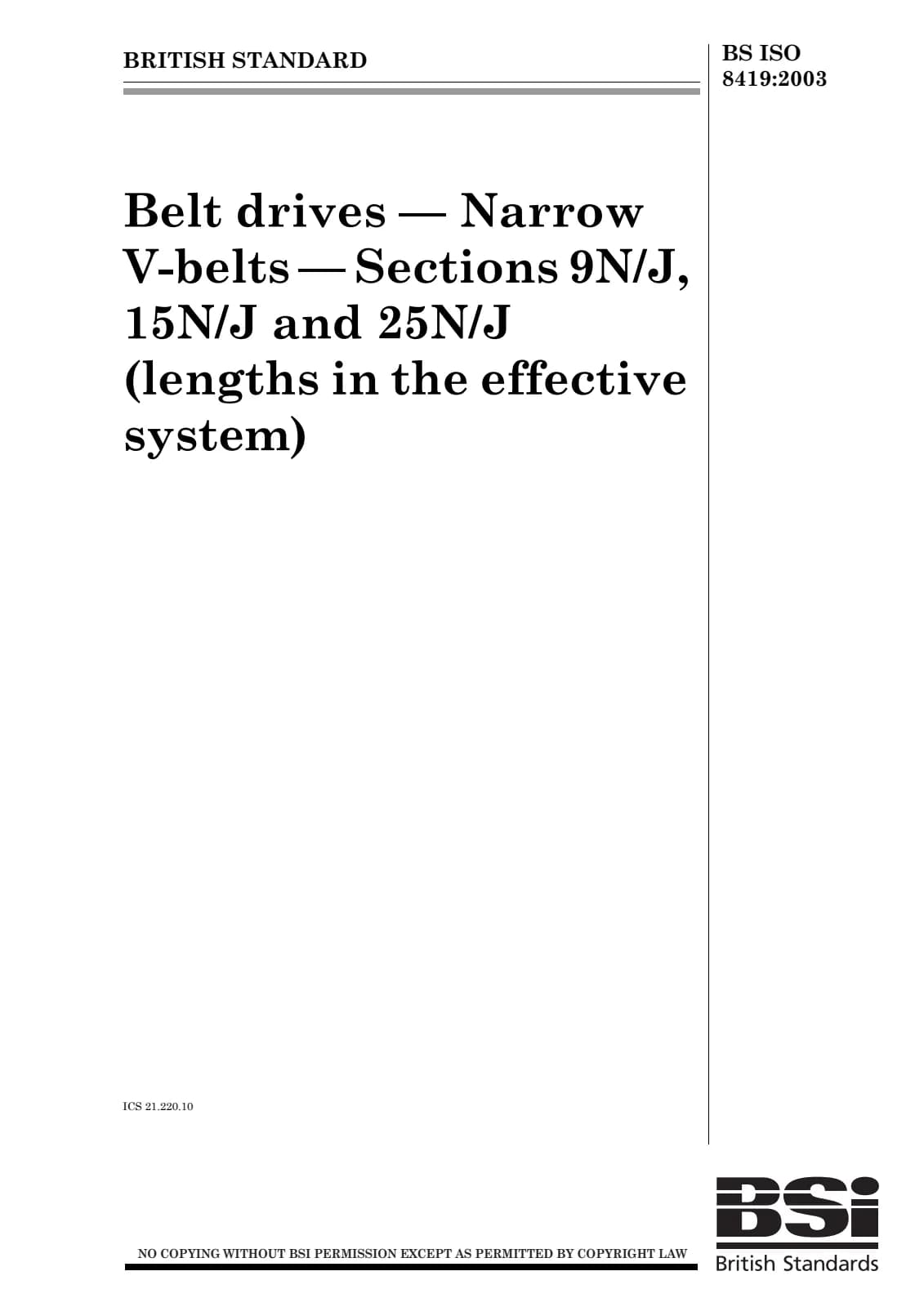

Belt drives. Narrow V-belts. Sections 9N/J, 15N/J and 25N/J (lengths in the effective system)
Открыть превью (PDF)Belt drives. Narrow V-belts. Sections 9N/J, 15N/J and 25N/J (lengths in the effective system)Belt drives. Narrow V-belts. Sections 9N/J, 15N/J and 25N/J (lengths in the effective system)
Сайт использует cookie и счётчики посещений для работы и статистики. Политика конфиденциальности
1 Scope This International Standard specifies, for narrow V-belts of cross-sections 9N/J (for pulley grooves of effective width 8,9 mm), 15N/J (for pulley grooves of effective width 15,2 mm) and 25N/J (for pulley grooves of effective width 25,4 mm),
— the standard effective lengths,
— the tolerances on effective lengths,
— the centre distance variations,
— the conditions for measuring the effective length and the centre distance variation, and
— the designation and marking.
NOTE 1 The cross-section of a narrow V-belt is defined by a number (9, 15 or 25) followed by the letter N or J to denote single or joined belts.
NOTE 2 To define belts of raw-edge cogged construction, the letter “X” is added, i.e. NX or JX.
