IEC 60874-19-2:1999 PDF

Connectors for optical fibres and cables - Part 19-2: Fibre optic adaptor (duplex) type SC for single-mode fibre connectors - Detail specification

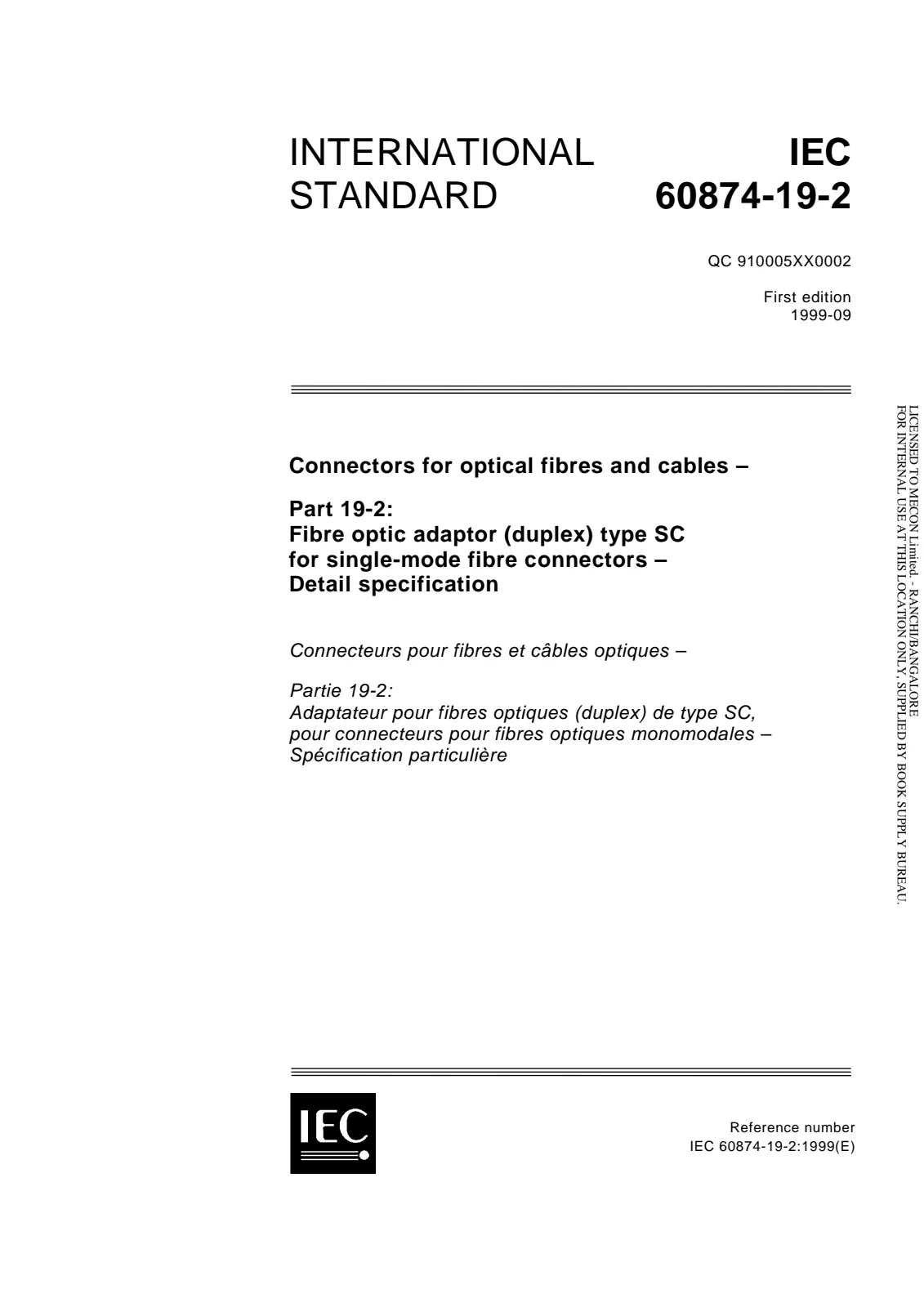

Первая страница стандарта IEC 60874-19-2:1999

Открыть превью (PDF)

Название (английский):

IEC 60874-19-2:1999

Connectors for optical fibres and cables - Part 19-2: Fibre optic adaptor (duplex) type SC for single-mode fibre connectors - Detail specification

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 18
Дата публикации:: 30 сентября 1999 г.
Издание:: IEC IS 60874 edition 1 version 1
ICS:: 33.180.20

Язык документа:

ruen

Срок поставки:3 раб. дн. (перевод)

Цена:270 €

Технические детали

Технический комитет: SC 86B - Fibre optic interconnecting devices and passive components
SKU: IEC 60874-19-2:1999

Abstract

Overview

IEC 60874-19-2:1999 is an IEC detail specification for the SC duplex fibre optic adaptor used with single‑mode fibre connectors. Published as part of the IEC 60874 series (IEC QC 910005XX0002), this standard defines mechanical dimensions, material/variant options, performance limits and qualification/inspection procedures for SC duplex adaptors intended for datacom and cabling applications (plug–adaptor–plug, push‑pull coupling).

Key topics and technical requirements

Product scope: SC duplex adaptor for single‑mode fibres; configuration plug–adaptor–plug; push‑pull coupling.
Variants & materials: plastic or metal housings; alignment sleeve materials such as zirconia or phosphor bronze. Variant numbering covers PC (SMF) and APC types (angled) with color coding: SMF = blue (RAL 5015); APC = green (RAL 6029).
Control dimensions & mounting: detailed mating‑face and panel‑piercing dimensions are specified; panel mounting notes include a maximum panel thickness of 1.6 mm when using spring hooks and an M2 thread recommendation when bolted.
Mechanical retention: Gauge retention force measured with gauge pins - PC: 2.0 N to 5.9 N; APC: 2.9 N to 5.9 N.
Optical performance: attenuation methodology defined (Method No. 8, LD source, 1.3 µm, averaging 5 measurements). Allowable attenuation: **

Overview

Key topics and technical requirements

Product scope: SC duplex adaptor for single‑mode fibres; configuration plug–adaptor–plug; push‑pull coupling.
Variants & materials: plastic or metal housings; alignment sleeve materials such as zirconia or phosphor bronze. Variant numbering covers PC (SMF) and APC types (angled) with color coding: SMF = blue (RAL 5015); APC = green (RAL 6029).
Control dimensions & mounting: detailed mating‑face and panel‑piercing dimensions are specified; panel mounting notes include a maximum panel thickness of 1.6 mm when using spring hooks and an M2 thread recommendation when bolted.
Mechanical retention: Gauge retention force measured with gauge pins - PC: 2.0 N to 5.9 N; APC: 2.9 N to 5.9 N.
Optical performance: attenuation methodology defined (Method No. 8, LD source, 1.3 µm, averaging 5 measurements). Allowable attenuation: **
