IEC 61300-2-14:2021 PDF

Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-14: Tests - High optical power

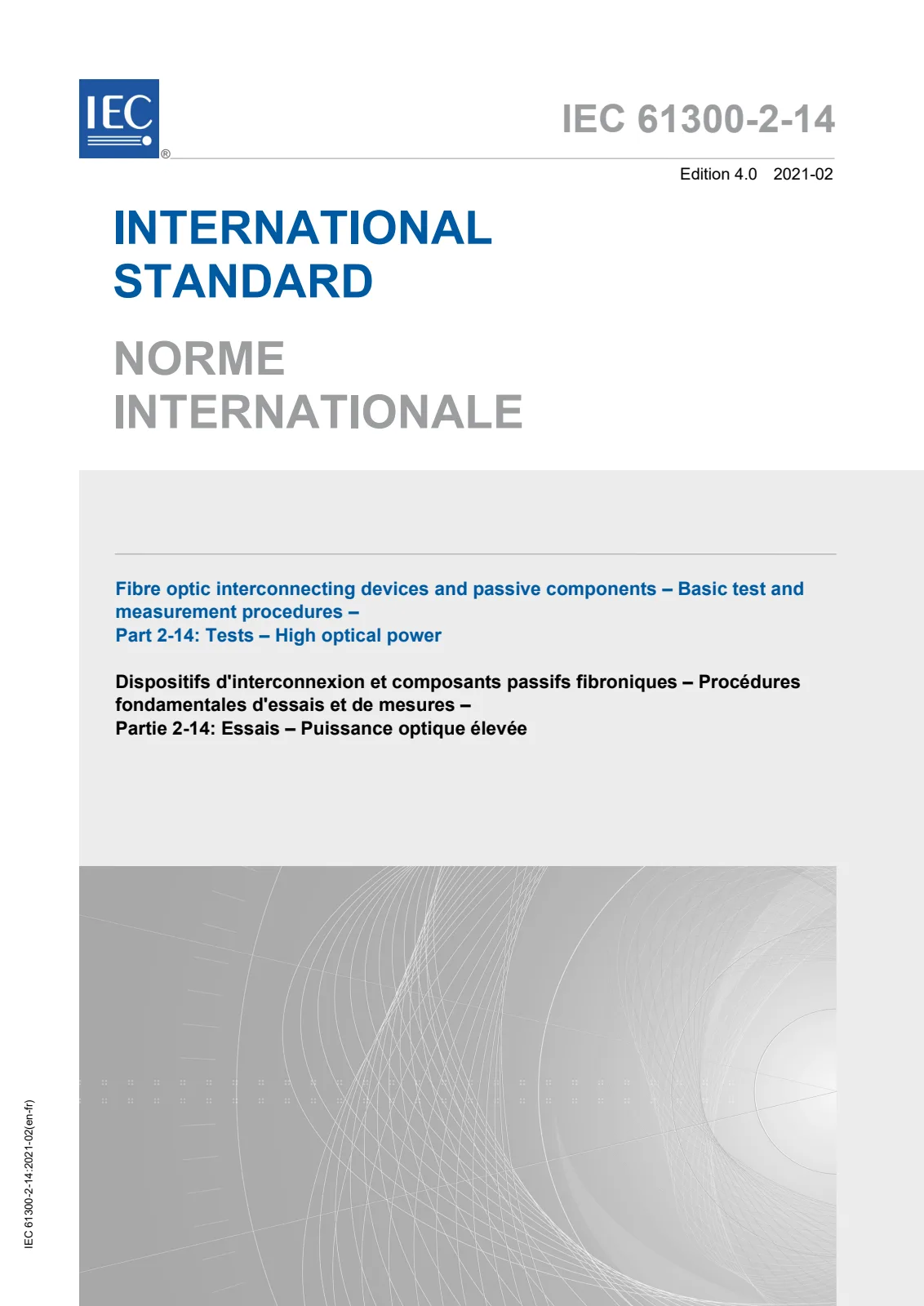

Первая страница стандарта IEC 61300-2-14:2021

Открыть превью (PDF)

Название (английский):

IEC 61300-2-14:2021

Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-14: Tests - High optical power

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 49
Дата публикации:: 11 февраля 2021 г.
Издание:: IEC IS 61300 edition 4 version 1
ICS:: 33.180.20

Язык документа:

ruen

Срок поставки:9 раб. дн. (перевод)

Цена:735 €

Описание (английский):

IEC 61300-2-14:2021 describes a procedure for determining the suitability of a fibre optic interconnecting device or a passive component to withstand exposure to the optical power which occurs during its operation. This fourth edition cancels and replaces the third edition published in 2012. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - harmonizing IEC 61300-1:2016 and IEC 61300-3-4:2012; - addition of abbreviated terms; - addition of Clause A.2 regarding input optical power from both ends.

Технические детали

Технический комитет: SC 86B - Fibre optic interconnecting devices and passive components
SKU: IEC 61300-2-14:2021

Abstract

Overview

IEC 61300-2-14:2021 is the IEC test procedure for assessing the ability of fibre optic interconnecting devices and passive components to withstand exposure to high optical power during operation. This fourth edition (2021) updates the 2012 version, harmonizing with IEC 61300-1:2016 and IEC 61300-3-4:2012, adds abbreviated terms and a new clause for input optical power from both ends. The standard defines test set‑ups, apparatus, severity parameters and pass/fail judgment criteria for optical‑power endurance testing of connectors, WDM modules and passive fibre components.

Key Topics and Technical Requirements

Test purpose: Determine suitability of a device under test (DUT) to withstand operational optical power without unacceptable degradation.
Apparatus and setup:
- Source (S): tunable light source (TLS) or tunable laser diode plus amplifier. For WWDM/CWDM nominal centre wavelength uncertainty ±5 nm; DWDM centre frequency stability requirements (examples: ±6.3 GHz for 25 GHz channel spacing).
- Optical detector (D): power meter with specified linearity and stability (linearity ≤ ±0.1 dB; uncertainty including polarization ≤ ±0.05 dB; resolution ≤ 0.01 dB).
- Environmental chamber, data acquisition system (DAS), branching devices, temporary joints and safety devices.
Procedure stages: preconditioning, initial measurements, conditioning (exposure), recovery, final measurements.
Severity parameters: optical power, wavelength(s), temperature, humidity and exposure time. Annex A provides example set-ups including WDM devices, series connections and both‑ends input testing.
Monitoring and pass/fail: active monitoring of insertion loss (IL) and return loss (RL) during exposure. Annex B gives examples of attenuation and return‑loss limits and criteria for judgment based on change.

Applications and Who Uses This Standard

Manufacturers of fibre optic connectors, passive components (splitters, WDM modules, isolators), and transceiver stubs use IEC 61300-2-14 for product qualification and reliability testing.
Test laboratories and quality‑assurance engineers adopt the procedure to verify component robustness under high optical power, supporting product acceptance, field reliability and supplier compliance.
System integrators and network operators rely on such test reports when deploying high‑power WDM/DWDM systems to ensure components will not degrade or fail under operational power levels.
R&D teams use the standard to design components with appropriate thermal and optical handling margins.

Related Standards

IEC 61300-1 (general guidance for basic test and measurement procedures)
IEC 61300-3-1, -3-3, -3-35 (visual and active measurement methods)
IEC 61300-3-4 (harmonized testing methods)
IEC 60825-1 (laser product safety)

Keywords: IEC 61300-2-14, high optical power testing, fibre optic interconnecting devices, passive components, optical power test, WDM, DWDM, insertion loss, return loss.

Overview

Key Topics and Technical Requirements

Test purpose: Determine suitability of a device under test (DUT) to withstand operational optical power without unacceptable degradation.
Apparatus and setup:
- Source (S): tunable light source (TLS) or tunable laser diode plus amplifier. For WWDM/CWDM nominal centre wavelength uncertainty ±5 nm; DWDM centre frequency stability requirements (examples: ±6.3 GHz for 25 GHz channel spacing).
- Optical detector (D): power meter with specified linearity and stability (linearity ≤ ±0.1 dB; uncertainty including polarization ≤ ±0.05 dB; resolution ≤ 0.01 dB).
- Environmental chamber, data acquisition system (DAS), branching devices, temporary joints and safety devices.
Procedure stages: preconditioning, initial measurements, conditioning (exposure), recovery, final measurements.
Severity parameters: optical power, wavelength(s), temperature, humidity and exposure time. Annex A provides example set-ups including WDM devices, series connections and both‑ends input testing.
Monitoring and pass/fail: active monitoring of insertion loss (IL) and return loss (RL) during exposure. Annex B gives examples of attenuation and return‑loss limits and criteria for judgment based on change.

Applications and Who Uses This Standard

Manufacturers of fibre optic connectors, passive components (splitters, WDM modules, isolators), and transceiver stubs use IEC 61300-2-14 for product qualification and reliability testing.
Test laboratories and quality‑assurance engineers adopt the procedure to verify component robustness under high optical power, supporting product acceptance, field reliability and supplier compliance.
System integrators and network operators rely on such test reports when deploying high‑power WDM/DWDM systems to ensure components will not degrade or fail under operational power levels.
R&D teams use the standard to design components with appropriate thermal and optical handling margins.

Related Standards

IEC 61300-1 (general guidance for basic test and measurement procedures)
IEC 61300-3-1, -3-3, -3-35 (visual and active measurement methods)
IEC 61300-3-4 (harmonized testing methods)
IEC 60825-1 (laser product safety)

Keywords: IEC 61300-2-14, high optical power testing, fibre optic interconnecting devices, passive components, optical power test, WDM, DWDM, insertion loss, return loss.
