Overview
IEC 61621:1997 is an international standard developed by the International Electrotechnical Commission (IEC) that specifies a test method to assess the resistance of dry, solid insulating materials when exposed to high-voltage, low-current arc discharges near their surfaces. This method provides a practical and standardized way to preliminarily differentiate between similar insulation materials based on their resistance to arc-induced damage. Due to its efficiency and relatively short testing time, IEC 61621 is widely used for preliminary material screening, detecting the effects of formulation changes, and performing quality control assessments in industrial environments.
Key Topics
- Scope: The standard applies to dry, solid insulating materials exposed to localized high-voltage, low-current arc discharges. The testing process evaluates how these materials withstand thermal and chemical decomposition, erosion, and the eventual formation of conductive paths across their surfaces.
- Failure Definition: Failure is declared when a conductive path forms or if burning of the material persists after arc interruption.
- Test Method: The arc test involves progressively severe conditions, starting with repeated low-current arc interruptions and advancing to higher arc currents.
- Material Suitability: The test yields reproducible results for thermoset materials but may not be suitable for thermoplastics due to significant variability. Control of electrode pressure and penetration depth is recommended for improved consistency with thermoplastics.
- Result Reporting: The outcome is measured as the time in seconds until a specimen failure occurs, with recommended minimum sample size and specific specimen preparation outlined for standardized comparison.
Applications
IEC 61621:1997 serves several critical functions in the testing and evaluation of electrical insulation materials:
- Material Screening: Enables manufacturers and researchers to quickly compare multiple insulation materials for their resistance to arc discharges, facilitating the selection of optimal products for specific electrical applications.
- Formulation Verification: Detects changes in material properties resulting from adjustments in formulation or processing, helping to ensure that performance criteria are consistently met.
- Quality Control: Assists in routine quality assurance checks during mass production of electrical and electronic components by providing a clear, replicable testing procedure and criteria for material acceptance or rejection.
- Component Design: Supports engineers in evaluating whether selected insulating materials meet safety and durability requirements for environments exposed to electrical arcing.
Related Standards
Several other IEC standards complement or relate to IEC 61621 in the assessment of insulating materials:
- IEC 60112: Method for determining the comparative and proof tracking indices of solid insulating materials under moist conditions.
- IEC 60212: Standard conditions for use prior to and during the testing of solid electrical insulating materials.
- IEC 60587: Test methods for evaluating resistance to tracking and erosion of electrical insulating materials used under severe ambient conditions.
- IEC 61302: Electrical insulating materials-method to evaluate resistance to tracking and erosion-rotating wheel dip test.
These related standards provide additional methodologies for evaluating the performance of insulating materials under various environmental conditions, particularly in the presence of moisture or severe ambient factors.
Keywords: IEC 61621, arc resistance test, insulating materials, high-voltage arc discharge, dielectric testing, electrical insulation, quality control, material screening, international standard, insulation performance.

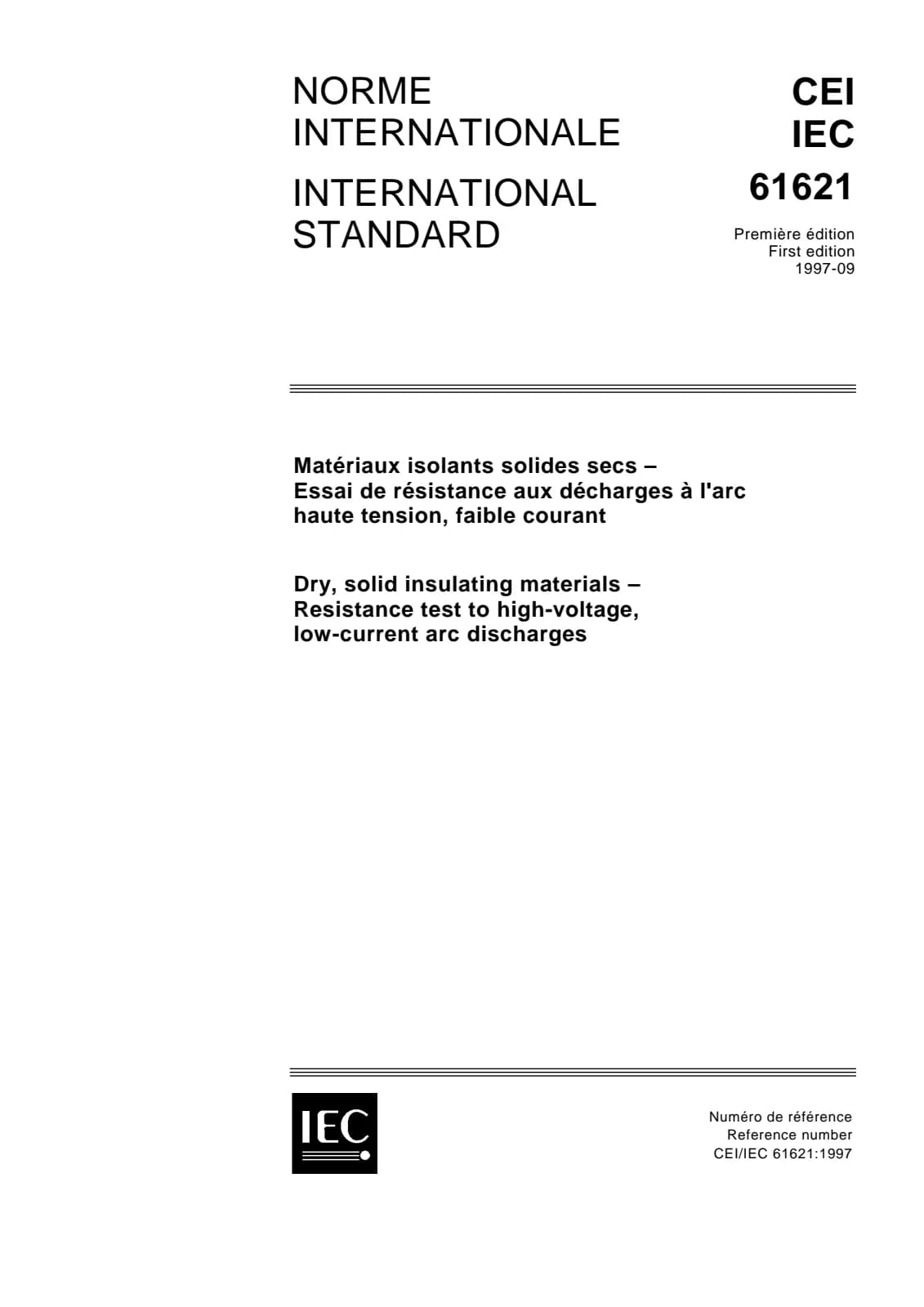

ΠΡΠΊΡΡΡΡ ΠΏΡΠ΅Π²ΡΡ (PDF)Dry, solid insulating materials - Resistance test to high-voltage, low-current arc discharges
