IEC 62047-29:2017 PDF

Semiconductor devices - Micro-electromechanical devices - Part 29: Electromechanical relaxation test method for freestanding conductive thin-films under room temperature

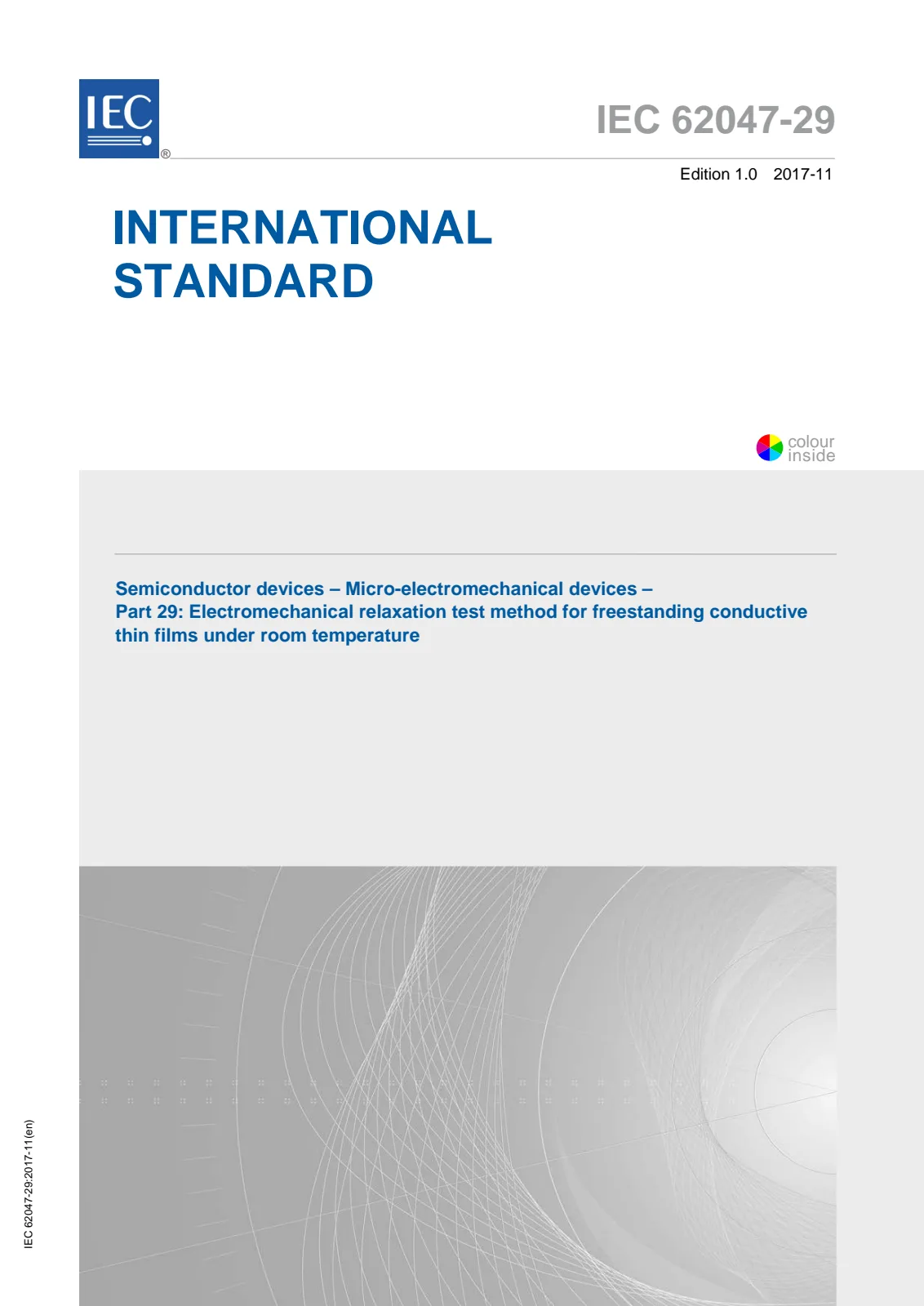

Первая страница стандарта IEC 62047-29:2017

Открыть превью (PDF)

Название (английский):

IEC 62047-29:2017

Semiconductor devices - Micro-electromechanical devices - Part 29: Electromechanical relaxation test method for freestanding conductive thin-films under room temperature

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 12
Дата публикации:: 22 ноября 2017 г.
Издание:: IEC IS 62047 edition 1 version 1
ICS:: 17.140.50

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:180 €

Описание (английский):

IEC 62047-29:2017(E) specifies a relaxation test method for measuring electromechanical properties of freestanding conductive thin films for micro-electromechanical systems (MEMS) under controlled strain and room temperature. Freestanding thin films of conductive materials are extensively utilized in MEMS, opto-electronics, and flexible/wearable electronics products. Freestanding thin films in the products experience external and internal stresses which could be relaxed even under room temperature during a period of operation, and this relaxation leads to time-dependent variation of electrical performances of the products. This test method is valid for isotropic, homogeneous, and linearly viscoelastic materials.

Технические детали

Технический комитет: SC 47F - Micro-electromechanical systems
SKU: IEC 62047-29:2017

Abstract

Overview

IEC 62047-29:2017 specifies an electromechanical relaxation test method for freestanding conductive thin films under room temperature. The standard defines how to measure time-dependent electromechanical behaviour - electrical resistance and mechanical stress relaxation - of freestanding conductive films used in MEMS, opto‑electronics and flexible/wearable electronics. It is applicable to isotropic, homogeneous, linearly viscoelastic materials and targets materials whose electrical performance can drift over time due to stress relaxation at ambient conditions.

Key topics and technical requirements

Test principle: apply a prescribed tensile strain, maintain it constant using feedback control, and record electrical resistance and stress as they relax over time. The ratio of electrical to mechanical relaxation characterizes piezoresistive behaviour.
Specimen design: freestanding test piece with four electrical contacts for four‑wire (Kelvin) measurement; gauge region must be uniform in strain.
- Gauge length l1 ≥ 20 × width l2; width l2 ≥ 10 × thickness h.
- Dimension measurements (l1, l2, h) with ≤ ±5% error.
Measurement methods:
- Four‑wire resistance measurement to remove contact/lead resistance effects.
- Non‑contact strain measurement (e.g., digital image correlation) recommended so gauge is not disturbed.
- Small measurement current to avoid self‑heating, while preserving resolution.
Environmental control:
- Temperature stability: fluctuations ≤ ±2 °C (electrical properties are temperature sensitive).
- For humidity‑sensitive polymeric substrates: relative humidity change ≤ ±5% RH.
Material scope and limits: valid for isotropic, homogeneous, linearly viscoelastic conductive thin films (common in MEMS and flexible electronics).
Key parameters defined: gauge factor (ΔR/R divided by strain change) and piezoresistive coefficient (relative resistivity change per stress).

Applications and users

Who uses IEC 62047-29:2017:

MEMS and microfabrication engineers validating long‑term electrical stability of freestanding conductive films.
R&D teams in flexible/wearable electronics and optoelectronics assessing time‑dependent resistance drift.
Test labs and materials scientists characterizing piezoresistive properties, gauge factor, and viscoelastic relaxation. Practical uses:
Risk assessment for device performance degradation due to stress relaxation at room temperature.
Qualification of fabrication processes and material selection for freestanding metal films (e.g., Au) and other conductive thin films.
Supporting design changes to mitigate time‑dependent electrical variation in sensors, interconnects and flexible circuits.

Related standards

Useful cross‑references within the IEC 62047 series:

IEC 62047-2:2006 - Tensile testing method of thin film materials
IEC 62047-3:2006 - Thin film standard test piece for tensile testing
IEC 62047-8:2011 - Strip bending test method for thin films
IEC 62047-21:2014 - Test method for Poisson’s ratio of thin film MEMS materials
IEC 62047-22:2014 - Electromechanical tensile test for conductive films on flexible substrates

Keywords: IEC 62047-29:2017, electromechanical relaxation test, freestanding conductive thin films, MEMS testing, four‑wire measurement, gauge factor, piezoresistive coefficient, room temperature testing, viscoelastic materials.

Overview

Key topics and technical requirements

Test principle: apply a prescribed tensile strain, maintain it constant using feedback control, and record electrical resistance and stress as they relax over time. The ratio of electrical to mechanical relaxation characterizes piezoresistive behaviour.
Specimen design: freestanding test piece with four electrical contacts for four‑wire (Kelvin) measurement; gauge region must be uniform in strain.
- Gauge length l1 ≥ 20 × width l2; width l2 ≥ 10 × thickness h.
- Dimension measurements (l1, l2, h) with ≤ ±5% error.
Measurement methods:
- Four‑wire resistance measurement to remove contact/lead resistance effects.
- Non‑contact strain measurement (e.g., digital image correlation) recommended so gauge is not disturbed.
- Small measurement current to avoid self‑heating, while preserving resolution.
Environmental control:
- Temperature stability: fluctuations ≤ ±2 °C (electrical properties are temperature sensitive).
- For humidity‑sensitive polymeric substrates: relative humidity change ≤ ±5% RH.
Material scope and limits: valid for isotropic, homogeneous, linearly viscoelastic conductive thin films (common in MEMS and flexible electronics).
Key parameters defined: gauge factor (ΔR/R divided by strain change) and piezoresistive coefficient (relative resistivity change per stress).

Applications and users

Who uses IEC 62047-29:2017:

MEMS and microfabrication engineers validating long‑term electrical stability of freestanding conductive films.
R&D teams in flexible/wearable electronics and optoelectronics assessing time‑dependent resistance drift.
Test labs and materials scientists characterizing piezoresistive properties, gauge factor, and viscoelastic relaxation. Practical uses:
Risk assessment for device performance degradation due to stress relaxation at room temperature.
Qualification of fabrication processes and material selection for freestanding metal films (e.g., Au) and other conductive thin films.
Supporting design changes to mitigate time‑dependent electrical variation in sensors, interconnects and flexible circuits.

Related standards

Useful cross‑references within the IEC 62047 series:

IEC 62047-2:2006 - Tensile testing method of thin film materials
IEC 62047-3:2006 - Thin film standard test piece for tensile testing
IEC 62047-8:2011 - Strip bending test method for thin films
IEC 62047-21:2014 - Test method for Poisson’s ratio of thin film MEMS materials
IEC 62047-22:2014 - Electromechanical tensile test for conductive films on flexible substrates

IEC 62047-29:2017 PDF

Технические детали

Abstract

Overview

Key topics and technical requirements

Applications and users

Related standards
