Overview
IEC 62397:2007 is an international standard developed by the International Electrotechnical Commission (IEC) that details the requirements for resistance temperature detectors (RTDs) used in nuclear power plants (NPPs). RTDs are critical components in instrumentation and control systems that are important to safety operations in NPP environments. This standard covers the design, material selection, manufacturing, testing, calibration, procurement, and inspection of RTDs to ensure their reliability and performance under demanding operating and accident conditions.
Key Topics
- Design and Construction: The standard outlines specific requirements for the design and construction of RTDs, focusing on ensuring long-term reliability and continuous successful operation at rated service conditions throughout the nuclear plant’s lifecycle.
- Material Selection: Special attention is given to selecting materials that can withstand harsh environmental conditions, including high temperatures, radiation, and humidity. Platinum is commonly used for the sensing element due to its stability and resistance to corrosion.
- Manufacturing and Workmanship: Guidelines for high-quality manufacturing and proper workmanship are included to ensure the RTD functions effectively and safely over its intended lifespan.
- Testing and Calibration: Rigorous procedures for testing, calibration, and inspection are defined, encompassing aspects like electrical connections, insulation resistance, response time, and accuracy.
- Qualification: Requirement for environmental and seismic qualification tests to prove the RTD’s capability to operate under accident scenarios such as loss-of-coolant accidents (LOCA) or high-energy line breaks (HELB).
- Performance Requirements: Criteria such as accuracy, reliability, drift, and response time are specified to ensure that RTDs meet the stringent demands of safety systems in NPPs.
Applications
RTDs compliant with IEC 62397:2007 are primarily used in the following nuclear power plant instrumentation and control applications:
- Safety-Critical Monitoring: RTDs provide accurate temperature measurements for essential safety systems, ensuring timely detection of abnormal plant conditions and enabling rapid response.

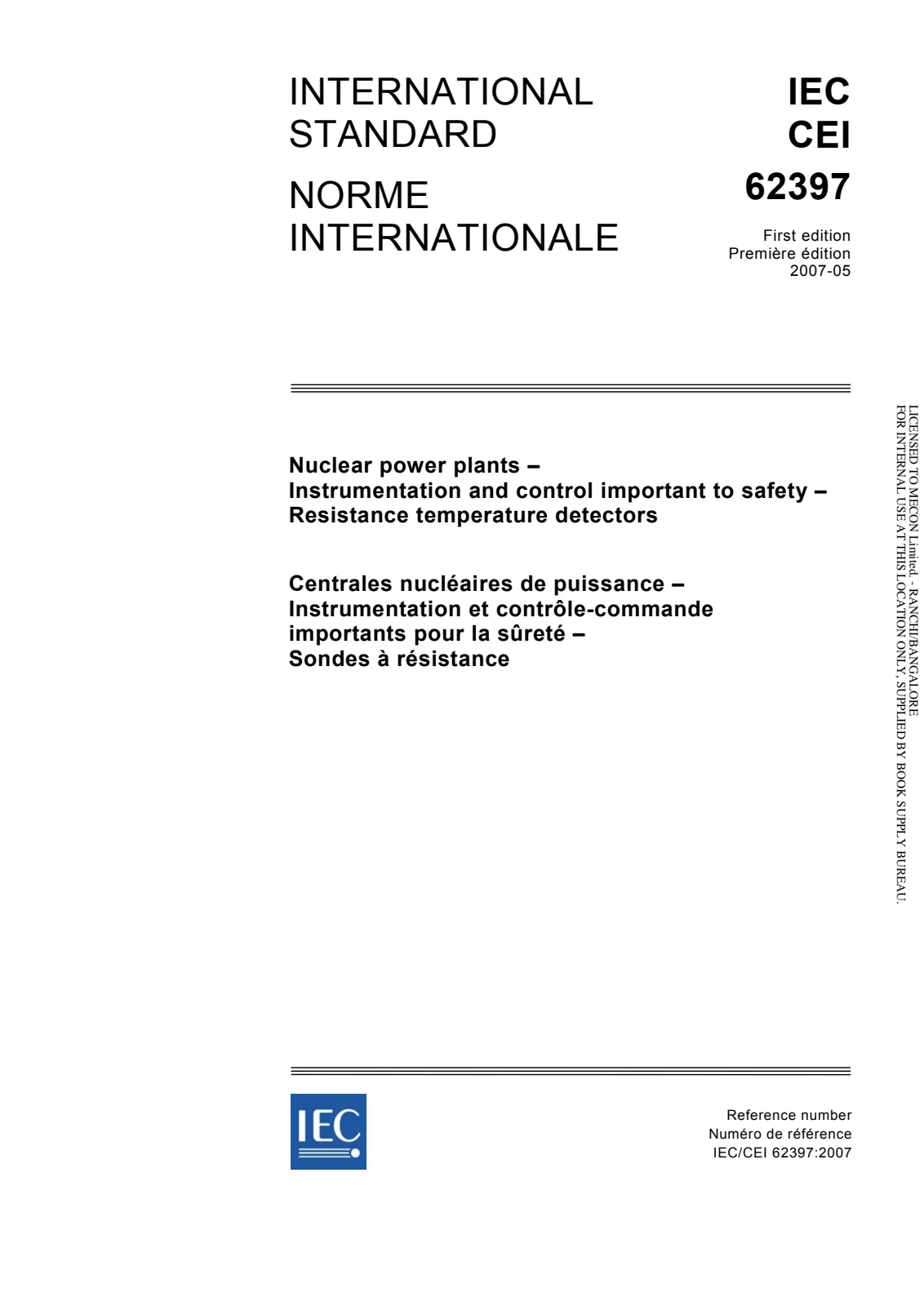

Открыть превью (PDF)Nuclear power plants - Instrumentation and control important to safety - Resistance temperature detectors
