Road vehicles — Anchorages in vehicles and attachments to anchorages for child restraint systems — Part 3: Classification of child restraint system and space in vehicle

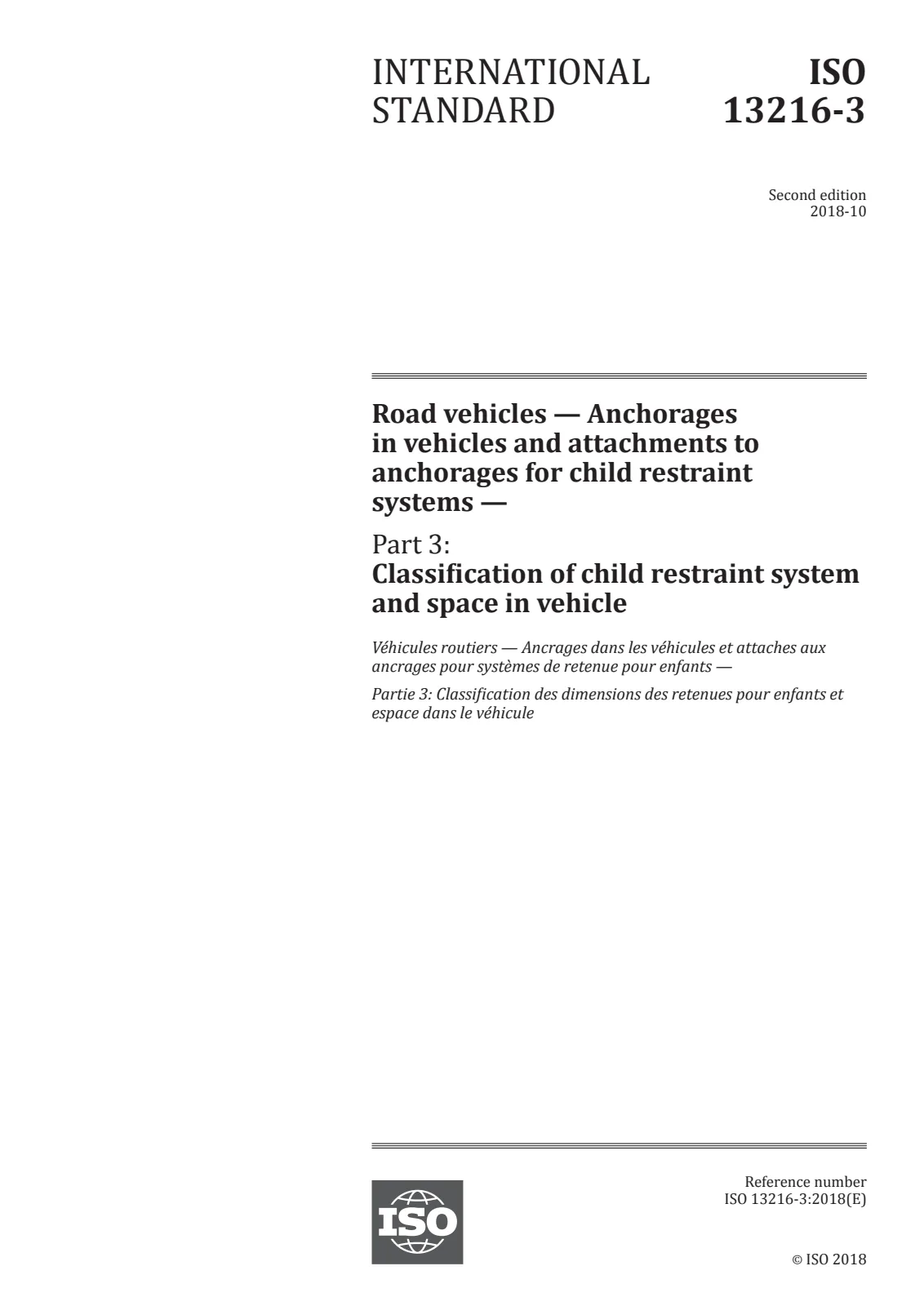

Первая страница стандарта ISO 13216-3:2018

Открыть превью (PDF)

Название (английский):

ISO 13216-3:2018

Road vehicles — Anchorages in vehicles and attachments to anchorages for child restraint systems — Part 3: Classification of child restraint system and space in vehicle

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 25
Дата публикации:: 18 октября 2018 г.
Издание:: ISO IS 13216 edition 2 version 1
ICS:: 43.040.80

Язык документа:

ruen

Срок поставки:5 раб. дн. (перевод)

Цена:375 €

Описание (английский):

This document classifies the spatial requirements in a vehicle to enable a child restraint system (CRS) to be conveniently mounted. It also specifies the dimensions of child restraint systems, to ensure that they will fit in vehicles. A classification scheme is provided to determine dimensional compatibility between child restraint systems and the available space at specified seating positions in vehicles. The dimensional requirements refer to forward-facing child restraint systems of three size categories, rearward-facing child restraint systems of three size categories, and lateral-facing child restraint systems of two categories. This edition of the document also incorporates size classification of booster systems.

Технические детали

Технический комитет: ISO/TC 22/SC 36 - Safety and impact testing
SKU: ISO 13216-3:2018

Abstract

Overview

ISO 13216-3:2018 - "Road vehicles - Anchorages in vehicles and attachments to anchorages for child restraint systems - Part 3" specifies how to classify the spatial compatibility between vehicles and child restraint systems (CRS). The standard defines child restraint envelopes and fixtures (CRF), maximum CRS dimensions, and a classification scheme so manufacturers, OEMs and testing labs can determine whether a given CRS will fit a specific vehicle seating position. The 2018 edition also incorporates booster system envelopes and updated lateral- and rearward-facing envelopes.

Key topics and technical requirements

Classification of CRS and vehicle space
- Three size categories for forward‑facing CRS, three for rearward‑facing CRS, and two for lateral‑facing CRS.
- Booster envelopes added (ISO/B1, ISO/B2, ISO/B3) for booster seat/cushion size classification.
Child restraint envelopes and CRF
- Envelopes simulate CRS geometry for dimensional compatibility checks; CRFs are physical implementations used in vehicle testing.
- CRF masses recommended for realistic seat compression (examples from the standard: R1 = 10 ±1 kg, R3 = 13 ±1 kg, B1 = 3 ±1 kg).
Vehicle installation and assessment rules
- Seat adjustment requirements when checking fit (e.g., seat to rearmost and lowest positions; front seat mid‑position for rear seating checks).
- Typical CRS pitch angle for checks: 15° ± 10°.
- Interference criteria: envelope must be accommodated without significant contact with head restraints, dashboards, windshields or front seats.
Virtual assessment
- Use of CAD and virtual tools is permitted provided they represent physical installation parameters (mass, center of gravity, seat compression).
Marking and consumer guidance
- Informative Annex A suggests marking schemes for vehicle seating positions and CRS dimensions to help consumers choose compatible products.

Practical applications and users

Vehicle manufacturers (OEMs) - design seat geometry and ISOFIX/anchorage locations to accommodate common CRS envelopes.
Child restraint manufacturers - size and mark CRS to show dimensional class compatibility with vehicles.
Test laboratories and conformity assessors - perform physical and virtual compatibility checks using CRFs and envelope definitions.
Regulators and standards bodies - adopt classification for vehicle type approvals and consumer safety information.
Consumers and retailers - use vehicle/CRS markings and classifications to select dimensionally compatible child seats and boosters.

Related standards

ISO 13216-1:1999 - Seat bight anchorages and attachments (normative reference for anchorage positioning and geometry).
Other parts of the ISO 13216 series for ISOFIX and anchorage requirements.

Keywords: ISO 13216-3:2018, child restraint system, CRS, child restraint envelope, CRF, ISOFIX, booster system, vehicle seating compatibility, CRS dimensions.

Overview

Key topics and technical requirements

Classification of CRS and vehicle space
- Three size categories for forward‑facing CRS, three for rearward‑facing CRS, and two for lateral‑facing CRS.
- Booster envelopes added (ISO/B1, ISO/B2, ISO/B3) for booster seat/cushion size classification.
Child restraint envelopes and CRF
- Envelopes simulate CRS geometry for dimensional compatibility checks; CRFs are physical implementations used in vehicle testing.
- CRF masses recommended for realistic seat compression (examples from the standard: R1 = 10 ±1 kg, R3 = 13 ±1 kg, B1 = 3 ±1 kg).
Vehicle installation and assessment rules
- Seat adjustment requirements when checking fit (e.g., seat to rearmost and lowest positions; front seat mid‑position for rear seating checks).
- Typical CRS pitch angle for checks: 15° ± 10°.
- Interference criteria: envelope must be accommodated without significant contact with head restraints, dashboards, windshields or front seats.
Virtual assessment
- Use of CAD and virtual tools is permitted provided they represent physical installation parameters (mass, center of gravity, seat compression).
Marking and consumer guidance
- Informative Annex A suggests marking schemes for vehicle seating positions and CRS dimensions to help consumers choose compatible products.

Practical applications and users

Vehicle manufacturers (OEMs) - design seat geometry and ISOFIX/anchorage locations to accommodate common CRS envelopes.
Child restraint manufacturers - size and mark CRS to show dimensional class compatibility with vehicles.
Test laboratories and conformity assessors - perform physical and virtual compatibility checks using CRFs and envelope definitions.
Regulators and standards bodies - adopt classification for vehicle type approvals and consumer safety information.
Consumers and retailers - use vehicle/CRS markings and classifications to select dimensionally compatible child seats and boosters.

Related standards

ISO 13216-1:1999 - Seat bight anchorages and attachments (normative reference for anchorage positioning and geometry).
Other parts of the ISO 13216 series for ISOFIX and anchorage requirements.
