ISO 29471:2008 PDF

Thermal insulating products for building applications — Determination of dimensional stability under constant normal laboratory conditions (23 degrees C/50 % relative humidity)

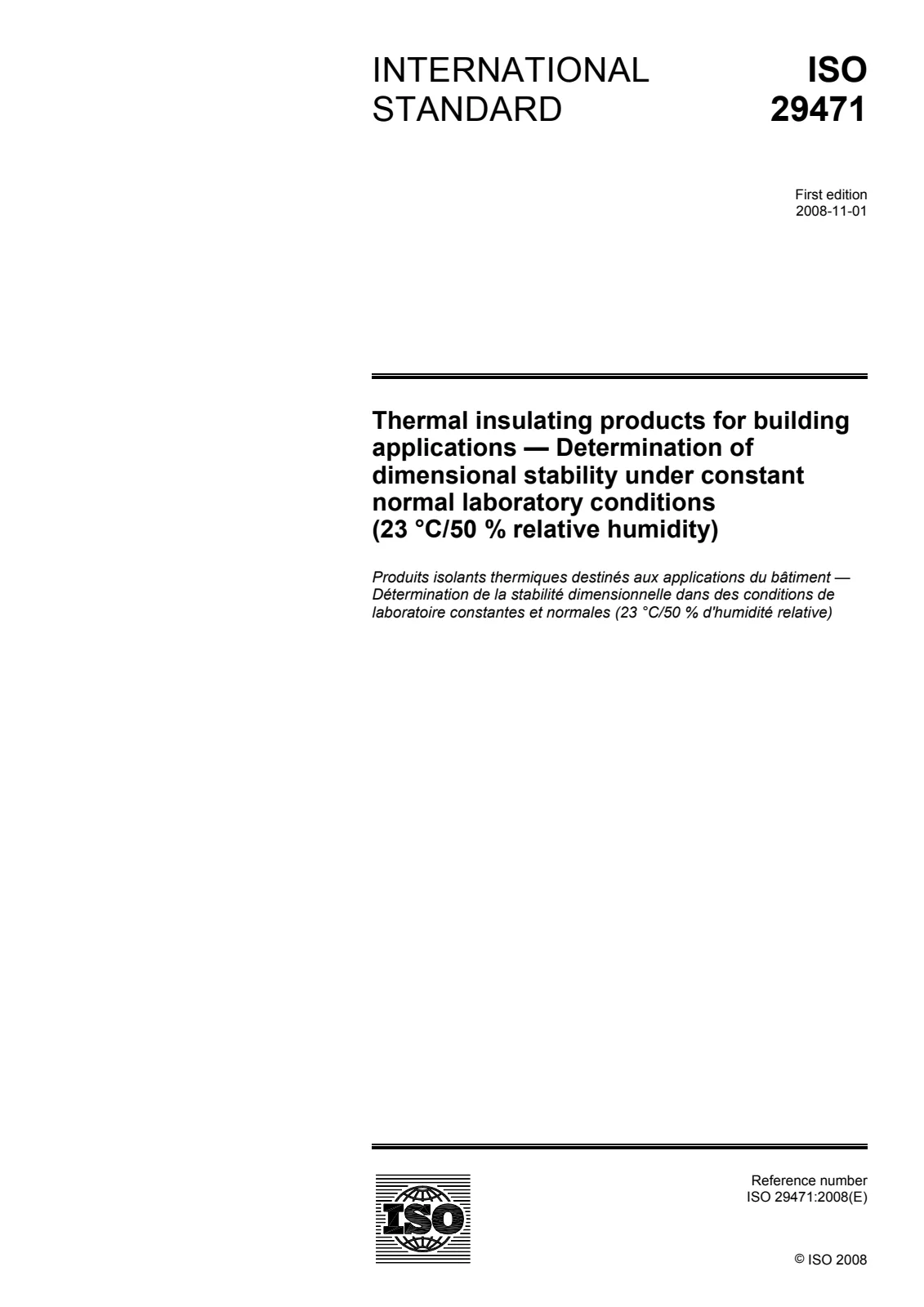

Первая страница стандарта ISO 29471:2008

Открыть превью (PDF)

Название (английский):

ISO 29471:2008

Thermal insulating products for building applications — Determination of dimensional stability under constant normal laboratory conditions (23 degrees C/50 % relative humidity)

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 7
Дата публикации:: 29 октября 2008 г.
Издание:: ISO IS 29471 edition 1 version 1
ICS:: 91.100.60

Язык документа:

ruen

Срок поставки:2 раб. дн. (перевод)

Цена:105 €

Описание (английский):

ISO 29471:2008 specifies the equipment and procedures to evaluate irreversible dimensional changes of test specimens and full-size products with time under constant normal laboratory conditions. ISO 29471:2008 is applicable to thermal insulating products.

Технические детали

Технический комитет: ISO/TC 163/SC 1 - Test and measurement methods
SKU: ISO 29471:2008

Abstract

Overview

ISO 29471:2008 establishes a standardized test method for assessing dimensional stability of thermal insulating products used in building applications under constant normal laboratory conditions (23 °C / 50 % relative humidity). The standard specifies the equipment, specimen preparation, conditioning and measurement procedures to evaluate irreversible changes in length, width and flatness of full-size products and test specimens over time.

Keywords: ISO 29471:2008, dimensional stability, thermal insulating products, 23°C/50% RH, thermal insulation testing, building applications.

Key topics and requirements

Scope and purpose: Evaluates irreversible dimensional changes of thermal insulation materials and products subjected to normal laboratory conditions.
Test atmosphere: Normal laboratory conditions defined as (23 ± 2) °C and (50 ± 5) % RH. Alternative tropical conditioning (27 °C / 65 % RH) may be stated in reports where relevant.
Measurement methods: Three permitted methods:
- Method A - linear dimensions of full-size products (use when total permitted change Δε ≥ 1 %).
- Method B - linear dimensions on specimens smaller than full size; two variants (B1 using metal plates + dial gauge, B2 using metal wire and optical/electrical device). Use when 0.1 % < Δε < 1 %.
- Method C - deviation from flatness for full-size products (requires 0.5 mm accuracy).
Specimen sizes and number: Thickness must equal original product thickness. Specimen area requirements: B1 typically 500 × 500 mm (min >250 × 250 mm), B2 250 × 250 mm. At least three specimens when not testing full-size products.
Conditioning and timing: Condition specimens ≥ 24 h before testing. Measure initial dimensions and then at standard intervals (minimum total duration 28 days with measurements at 28-day intervals). Optional additional readings at 1, 3, 7 and 14 days for finer curves. Continue until dimensional change between last two readings

Overview

Keywords: ISO 29471:2008, dimensional stability, thermal insulating products, 23°C/50% RH, thermal insulation testing, building applications.

Key topics and requirements

Scope and purpose: Evaluates irreversible dimensional changes of thermal insulation materials and products subjected to normal laboratory conditions.
Test atmosphere: Normal laboratory conditions defined as (23 ± 2) °C and (50 ± 5) % RH. Alternative tropical conditioning (27 °C / 65 % RH) may be stated in reports where relevant.
Measurement methods: Three permitted methods:
- Method A - linear dimensions of full-size products (use when total permitted change Δε ≥ 1 %).
- Method B - linear dimensions on specimens smaller than full size; two variants (B1 using metal plates + dial gauge, B2 using metal wire and optical/electrical device). Use when 0.1 % < Δε < 1 %.
- Method C - deviation from flatness for full-size products (requires 0.5 mm accuracy).
Specimen sizes and number: Thickness must equal original product thickness. Specimen area requirements: B1 typically 500 × 500 mm (min >250 × 250 mm), B2 250 × 250 mm. At least three specimens when not testing full-size products.
Conditioning and timing: Condition specimens ≥ 24 h before testing. Measure initial dimensions and then at standard intervals (minimum total duration 28 days with measurements at 28-day intervals). Optional additional readings at 1, 3, 7 and 14 days for finer curves. Continue until dimensional change between last two readings
