ISO 8501-2:1994 PDF

Preparation of steel substrates before application of paints and related products — Visual assessment of surface cleanliness — Part 2: Preparation grades of previously coated steel substrates after localized removal of previous coatings

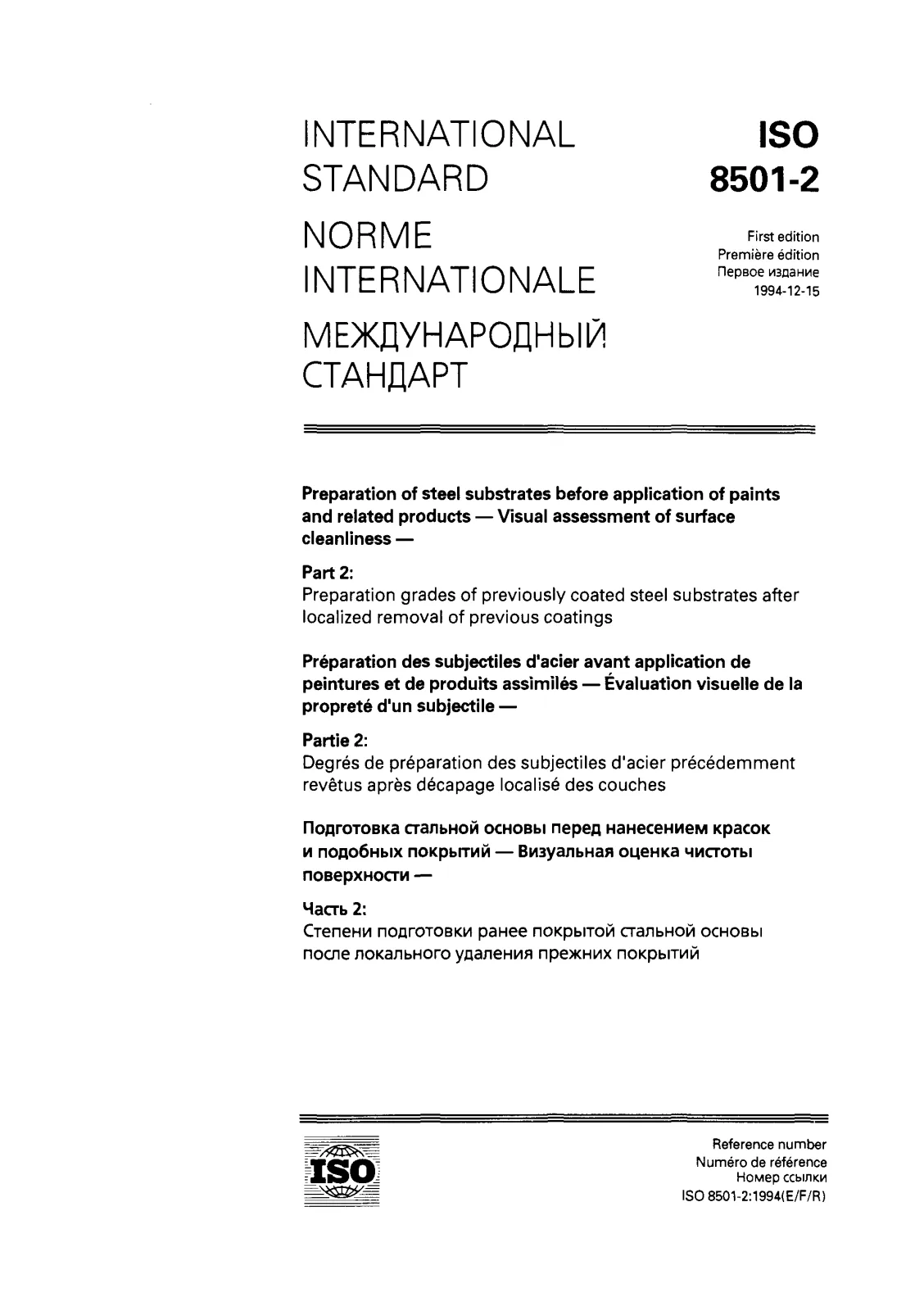

Первая страница стандарта ISO 8501-2:1994

Открыть превью (PDF)

Название (английский):

ISO 8501-2:1994

Статус документа:: Действующий
Формат:: Электронный (PDF)
Количество страниц:: 100
Дата публикации:: 30 декабря 1994 г.
Издание:: ISO IS 8501 edition 1 version 1
ICS:: 25.220.10

Язык документа:

ruen

Срок поставки:17 раб. дн. (перевод)

Цена:1 500 €

Описание (английский):

Specifies a series of preparation grades for steel surfaces after localized removal of previous paint coatings. Contains photographs showing examples of preparation grades. The various preparation grades are defined by written descriptions. Applicable to surfaces prepared for painting by methods such as blast-cleaning, hand- and power-tool cleaning, and machine abrading.

Технические детали

Технический комитет: ISO/TC 35/SC 12 - Preparation of steel substrates before application of paints and related products
SKU: ISO 8501-2:1994

Abstract

Overview

ISO 8501-2:1994 specifies a series of preparation grades for steel substrates after localized removal of previous paint coatings. It provides written definitions and photographic examples (with cross-reference to ISO 8501-1) to enable a consistent visual assessment of surface cleanliness prior to repainting. The standard covers surfaces prepared by common methods such as localized blast‑cleaning, hand- and power‑tool cleaning, and machine abrading and is intended for maintenance and repair situations where full removal of existing coatings is not required.

Key topics and technical requirements

Preparation grade system: Designations beginning with “P” and a method code - P Sa (localized blast‑cleaning), P St (localized hand‑ and power‑tool cleaning), P Ma (localized machine abrading). Subgrades describe degrees of cleanliness (e.g., thorough vs. very thorough).
Visual definitions: Each grade is defined by written descriptions of the post‑cleaning appearance (presence/absence of mill scale, rust, loose paint, stains, metallic sheen).
Preparation procedure requirements:
- Remove heavy rust and loose material (chipping) before localized cleaning.
- Remove visible oil, grease and dirt prior to and after cleaning.
- Clear loose dust and debris after the cleaning operation.
Limitations and considerations:
- Visual assessment relates to appearance; invisible contaminants (soluble salts, welding residues) may require testing (see ISO 8502).
- Surface roughness and profile considerations refer to ISO 8503.
- The retained coating must be compatible and contribute to the new protection system; localized removal is only acceptable where it meets durability and economic criteria.
Illustrative materials: Photographic examples in ISO 8501-1 (and appended photos in this part) support interpretation of the grades.

Applications and who uses it

ISO 8501-2:1994 is used by:

Coating specifiers and engineers to define acceptable localized cleaning levels for maintenance painting.
Inspection and quality control personnel to visually assess and document preparation grades on-site.
Contractors and surface‑treatment operatives to match cleaning method to the required preparation grade.
Asset owners and maintenance planners in industries such as infrastructure, marine, offshore, pipelines, and heavy industry where spot repairs and maintenance repainting are frequent.

Practical uses include specifying acceptable localized preparation for spot repair, assessing repair readiness for recoating, and ensuring consistent visual quality across maintenance activities.

Related standards

ISO 8501-1 (photographic examples and rust/prep grades)
ISO 8502 (tests for surface cleanliness)
ISO 8503 (surface roughness of blast‑cleaned steel)
ISO 8504 (surface preparation methods)
ISO 4628 series, ISO 2409, ISO 4624, ISO 4627 (paint/coating evaluation and test methods)

Keywords: ISO 8501-2:1994, surface preparation, steel substrates, visual assessment, preparation grades, localized blast-cleaning, hand- and power-tool cleaning, machine abrading, paint recoating.

Overview

Key topics and technical requirements

Preparation grade system: Designations beginning with “P” and a method code - P Sa (localized blast‑cleaning), P St (localized hand‑ and power‑tool cleaning), P Ma (localized machine abrading). Subgrades describe degrees of cleanliness (e.g., thorough vs. very thorough).
Visual definitions: Each grade is defined by written descriptions of the post‑cleaning appearance (presence/absence of mill scale, rust, loose paint, stains, metallic sheen).
Preparation procedure requirements:
- Remove heavy rust and loose material (chipping) before localized cleaning.
- Remove visible oil, grease and dirt prior to and after cleaning.
- Clear loose dust and debris after the cleaning operation.
Limitations and considerations:
- Visual assessment relates to appearance; invisible contaminants (soluble salts, welding residues) may require testing (see ISO 8502).
- Surface roughness and profile considerations refer to ISO 8503.
- The retained coating must be compatible and contribute to the new protection system; localized removal is only acceptable where it meets durability and economic criteria.
Illustrative materials: Photographic examples in ISO 8501-1 (and appended photos in this part) support interpretation of the grades.

Applications and who uses it

ISO 8501-2:1994 is used by:

Coating specifiers and engineers to define acceptable localized cleaning levels for maintenance painting.
Inspection and quality control personnel to visually assess and document preparation grades on-site.
Contractors and surface‑treatment operatives to match cleaning method to the required preparation grade.
Asset owners and maintenance planners in industries such as infrastructure, marine, offshore, pipelines, and heavy industry where spot repairs and maintenance repainting are frequent.

Practical uses include specifying acceptable localized preparation for spot repair, assessing repair readiness for recoating, and ensuring consistent visual quality across maintenance activities.

Related standards

ISO 8501-1 (photographic examples and rust/prep grades)
ISO 8502 (tests for surface cleanliness)
ISO 8503 (surface roughness of blast‑cleaned steel)
ISO 8504 (surface preparation methods)
ISO 4628 series, ISO 2409, ISO 4624, ISO 4627 (paint/coating evaluation and test methods)

Keywords: ISO 8501-2:1994, surface preparation, steel substrates, visual assessment, preparation grades, localized blast-cleaning, hand- and power-tool cleaning, machine abrading, paint recoating.
